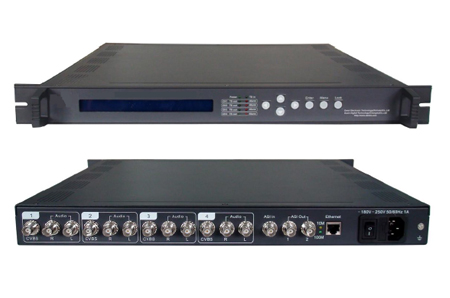

Digital Entertainment system/ MDTV 3224 SD IPTV Encoder
The MDTV 3224 SD Encoder is a professional SD audio & video encoding and multiplexing device with powerful functionality. It has 4 channel CVBS video and unbalanced audio input interfaces, supporting MPEG -4 AVC/H.264 High Profile code format.
This device can simultaneously encode 4 channel SD audio & video; moreover, it has an ASI input and can multiplex the input TS with the 4 encoded SPTS to generate a MPTS output. Also, the PSI/SI information can be inserted into MPTS output. In co nclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as CATV digital head-end, satellite and terrestrial digital TV, etc.
Product DescriptionFile DownloadProduct Specification
Features
· H.264/AVC High Profile Level 3.0 video encoding support, advanced video pretreatment algorithm
· Audio MPEG1 Layer 2, HE-AAC V2 (optional)
· 4 CVBS video inputs
· 4 pairs of unbalanced stereo audio inputs
·1 ASI input multiplexing support
· Multiplexed MPTS ASI output support
· Multiplexed MPTS over UDP unicast/multicast output
· PAL, NTSC SD video formats support
· LCD / keyboard operating
· Real-time effective output bit-rate monitoring
· NMS support
Specifications
| Input | 4×CVBS inputs , BNC interface | |
| 4 pairs unbalanced stereo audio inputs, BNC interface | ||
| 1×ASI input, BNC interface | ||
| Video | Resolution | 720×480_60i, 720×576_50i |
| Encoding | MPEG-4 AVC/H.264 High Profile Level 3.0 | |
| Bit rate | 0.8Mbps~20Mbps each channel | |
| Rate Control | CBR/VBR | |
| GOP Structure | IBBP | |
| Advanced Pretreatment | De-interlacing, noise reduction, sharpening | |
| Audio | Encoding | MPEG-1 Layer 2 HE-AAC V2(optional) |
| Sampling rate | 48KHz, 44.1KHz | |
| Resolution | 24 bit | |
| Bitrate | 64Kb/s~384Kb/s (each channel) | |
| Multiplexing | 1 ASI input multiplexed with local 4 channels TS | |
| Stream output | 2 × ASI outputs, BNC interface | |
| MPTS over UDP,10/100Base-T Ethernet interface (UDP unicast / multicast) | ||
| System function | LCD/keyboard operating, NMS support,Chinese-English control interface | |
| Ethernet software upgrade | ||
| General | Dimensions (WxDxH) | 482mm×455mm×44.5mm |
| Approx weight | 6Kg | |
| Temperature range | 0~45℃(Operation), -20~80℃(Storage) | |
| Power requirements | AC 110V±10%,50/60Hz or AC 220V±10%,50/60Hz | |
| Power consumption | 17.6W | |
